C9300-48P-E

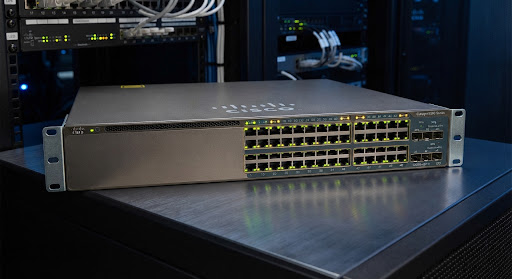

Cisco Catalyst 9300 48-Port PoE+ Switch, Network Essentials
Tier-1 enterprise access switch featuring high-density 802.3at PoE+ power, modular high-speed uplink slots, wire-rate hardware encryption, and Cisco StackWise-480 architecture with 480 Gbps stacking throughput.
Engineered for High-Density Campus Switching
The Catalyst 9300 Series is Cisco’s premier lead stackable enterprise switching platform, engineered for security, IoT, mobility, and cloud convergence with unmatched PoE resilience.
High-Density Stacking Architecture
Powered by Cisco StackWise-480 technology, providing 480 Gbps of stacking bandwidth across up to 8 switches in a unified stack ring. Features deterministic sub-50ms stateful switchover (SSO) for mission-critical campus backbones.
Resilient PoE+ Power Infrastructure
Equipped with a default 715W AC Platinum power supply delivering 437W of dedicated PoE+ budget. Add a second hot-swappable modular PSU to scale up to 1440W of dynamic power allocation with Perpetual PoE and Fast PoE reboot resilience.
Cisco UADP 2.0 Silicon & Hardware Encryption
Programmable Unified Access Data Plane (UADP 2.0) ASIC enables line-rate Layer 2/3 classification, Flexible NetFlow (FNF), MACsec-128 link encryption, and micro-segmentation with Group-Based Policies (GBP).
Automated Deployment & Streaming Telemetry
Full open API ecosystem supporting NETCONF, RESTCONF, and YANG models. Supports model-driven streaming telemetry, on-box Python scripting, and zero-touch provisioning via Cisco Catalyst Center (DNA Center).
Detailed Technical Specifications
info
General Information & Hardware Identity
expand_more
| Manufacturer | Cisco Systems, Inc. |
| Product Series | Catalyst 9300 Series Enterprise Switches |
| Exact Order Part Number (SKU) | C9300-48P-E |
| Software License Tier | Cisco Network Essentials (Perpetual Base L3 Routing) |
| UNSPSC Code | 43222612 |
| Form Factor | 1RU Standard 19" EIA Rackmount |
lan
Ports & Interface Density
expand_more

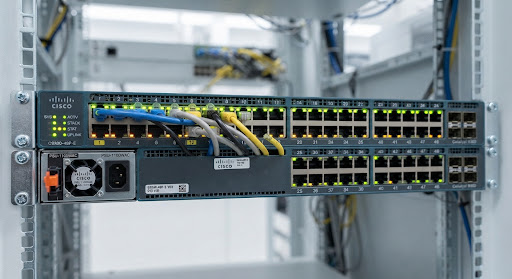

| Downlink Base Ports | 48x 10/100/1000Base-T Gigabit Ethernet RJ-45 PoE+ (802.3at) |
| Modular Uplink Expansion Bays | 1 Field-Replaceable Network Module slot (supports 8x 10G, 4x 10G, 2x 40G) |
| Supported Uplink Modules | C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M |
| Stacking Technology Ports | 2x Dedicated StackWise-480 ports (Cables: STACK-T1-50CM / 1M / 3M) |
| Management & Console | 1x RJ-45 Console, 1x USB Mini-B Type-B Console, 1x 10/100/1000 OOB RJ-45, 1x USB 2.0 Host |
speed
Performance & Switching Metrics
expand_more
| Standalone Switching Bandwidth | 256 Gbps (Full Duplex) |
| Switching Capacity with Stacking | 736 Gbps (Ring Topology) |
| Forwarding Rate (64-byte packets) | 190.48 Mpps (Million Packets Per Second) |
| MAC Address Table Size | 32,000 entries |
| Packet Buffer Memory | 16 MB on-chip shared packet buffer |
| DRAM & Flash Memory | 8 GB System Memory / 16 GB Internal Flash |
power
Power Supplies & PoE Budgets
expand_more

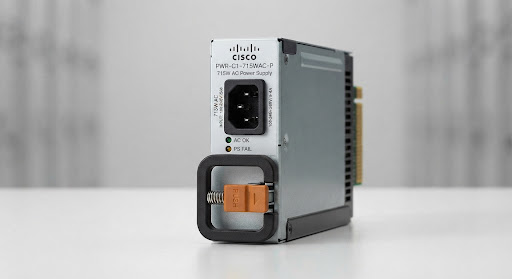

| Default Shipped Power Supply | 1x PWR-C1-715WAC-P (715W AC Platinum Efficiency) |
| Available PoE+ Budget (Default) | 437 Watts |
| Max PoE Budget (Dual 1100W PSUs) | 1440 Watts |
| Input Voltage Rating | 100 to 240 VAC Auto-ranging, 50 to 60 Hz |
| StackPower Redundancy | Supported via StackPower cables (up to 4 switches power sharing) |
square_foot
Physical, Mechanical & Compliance
expand_more
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 in (4.4 x 44.5 x 44.5 cm) |
| Chassis Weight (with Default PSU) | 16.33 lbs (7.4 kg) |
| Operating Temperature Range | -5°C to 45°C (23°F to 113°F) up to 5,000 feet |
| Mean Time Between Failures (MTBF) | 314,790 hours |
| Environmental Regulatory Compliance | RoHS-6 compliant, China RoHS, WEEE, REACH certified |
Compatible Transceivers & Expansion Modules
Pre-tested and guaranteed 100% interoperable with Catalyst 9300 IOS-XE release trains.

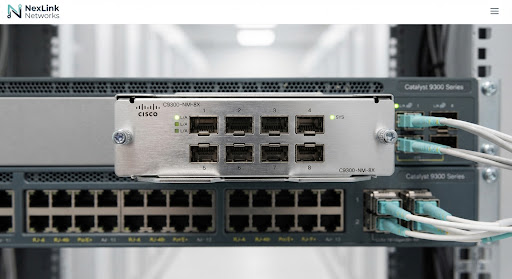

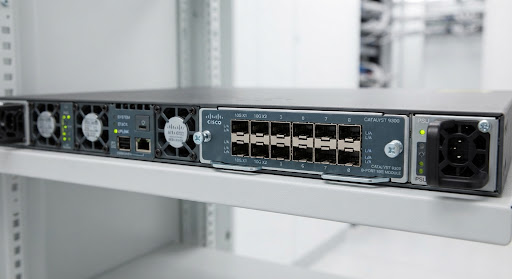

Catalyst 8x 10GE SFP+ Network Uplink Module
Enables 8x 10GbE or 8x 1GbE SFP optical uplinks

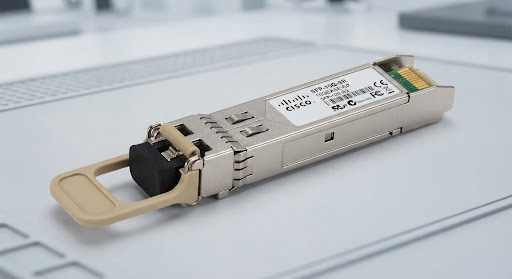

10GBASE-SR SFP+ 850nm MMF Transceiver
Supports up to 300m reach over OM3 multi-mode fiber

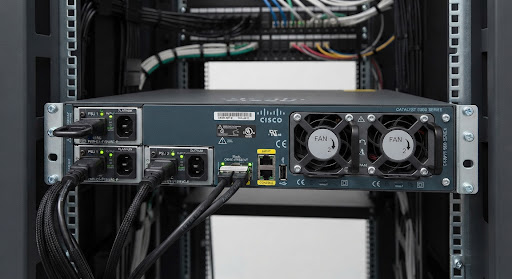

715W AC Platinum Secondary PSU Module
Enables 1+1 full power supply redundancy and PoE backup

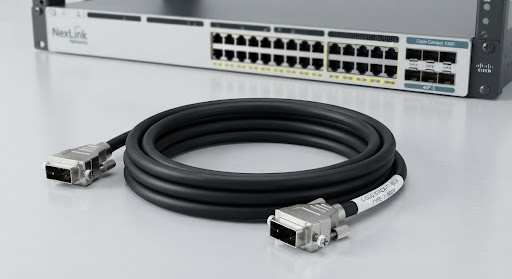

Cisco Type 1 50cm Stacking Cable
StackWise-480 high-speed 480Gbps interconnect link

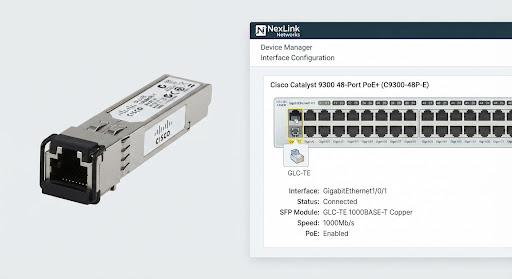

1000BASE-T Copper RJ-45 SFP Module
Extended temperature Category 5 copper up to 100m
Verified Technical Documentation
Cisco C9300 Hardware Datasheet
PDF Document • 3.8 MB Updated Q1 2025 • Revision 18.4 download Download DatasheetHardware Installation Guide
PDF Document • 5.2 MB Rackmount, Pinouts & Grounding download Download ManualCisco IOS-XE 17.x Release Matrix
PDF Document • 2.1 MB Feature Compatibility & Transceiver ROM download Download MatrixAlternative & Cross-Platform Switches
Compare feature sets and lead times across equivalent Cisco, Juniper, and Aruba access layers.
C9300-48P-A
Catalyst 9300 Network AdvantageIdentical 48-port PoE+ chassis with full BGP, IS-IS, VXLAN fabric, and DNA Premier upgrade capability.
C9300-24P-E
24-Port Compact Branch SwitchLower density variant with 24x PoE+ ports, ideal for wiring closets with smaller port requirements.
EX4300-48P
Junos OS Enterprise SwitchVirtual Chassis technology with 320 Gbps backplane. 48x PoE+ ports with 4x 40GbE native QSFP+ ports.
CX 6300M 48G PoE+
AOS-CX Programmable Layer 3Cloud-native architecture with built-in Network Analytics Engine (NAE) and modular uplinks.
Frequently Asked Questions
What is included with the C9300-48P-E factory carton?
Each sealed carton contains the Cisco Catalyst 9300 48-port switch chassis, one PWR-C1-715WAC-P power supply, power cord, 19-inch rackmount brackets with hardware, and an RJ-45 console cable. Uplink network modules and stacking cables are ordered separately.
What is the difference between Network Essentials and Network Advantage?
Network Essentials (-E) provides complete Layer 2 and foundational Layer 3 routing (static, RIP, OSPF routed access, PBR). Network Advantage (-A) adds advanced campus fabrics (BGP, IS-IS, full OSPF, VRF, VXLAN, and Cisco TrustSec).
Are all 38 units in stock?
Yes. All 38 units are on the shelf in Addis Ababa, Ethiopia.
Does ETLink provide serial numbers for Cisco Smart Net Total Care?
Yes. All units are clean, non-contract-blocked genuine Cisco hardware verified for serial number validation and fully eligible for Cisco SNTC contract attachment.
Need verification on optics or stacking topology?
Not sure if C9300-48P-E meets your campus throughput and PoE budget? Our CCIE and JNCIE certified network engineers verify transceivers, optic compatibilities, and stacking topologies within 60 minutes.
